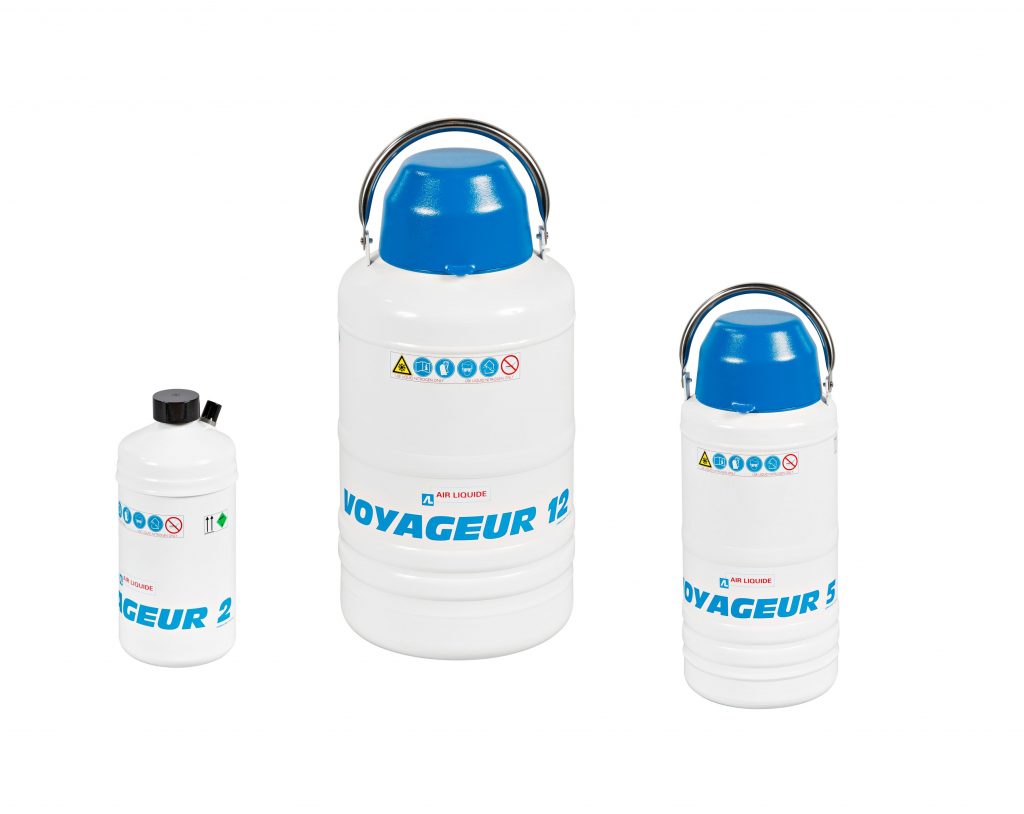

Liquid nitrogen container made of aluminum type Voyageur for the safe transport of biological materials

Properties

  • Lightweight aluminum container with composite materials in the neck area
  • Low evaporation rate
  • Superinsulation film in the vacuum space
  • Low tare weight
  • The liquid nitrogen is secured in a porous mass
  • No leakage of the liquid nitrogen
  • Sample stored in the gas phase
  • Complies with all international regulations for road transport (ADR), rail (RID) and air transport (IATA-OACI)

Standard equipment

  • Vacuum safety valve
  • Stainless steel suspension canister
  • Carrying handle or carrying strap

Accessories

  • Protective packaging for transportation
  • Data logger for recording temperature data during transportation: 2548-DL

Technical data

Type VOYAGEUR V 2 V 5 V 12
Order no. 2548-V2 2548-V5 2548-V12
Useful capacity [l] 1,75 6,5 15
Of which in the porous mass [l] 1,35 4,8 10,5
Weight empty [kg] 2,4 7,5 11,6
Weight full [kg] 3,5 11,3 20
Neck diameter [mm] 30 50 80
Total height [mm] 395 550 570
Diameter [mm] 174 248 308
Static evaporation rate [l/d] 0,10 0,13 0,24
Static service life [d] 13 37 44
Canister 2 2 2
Diameter [mm] 26 41 71
Height [mm] 120 280 280

Storage capacity for 2ml tubes

Type VOYAGEUR V 2 V 5 V 12
Number of tubes 2ml 84 252
Protective transport packaging V 2 V 5 V 12
made of plastic 2548-V2SK 2548-V5SK 2548-V12SK
made of metal 2548-V2SK 2548-V5SK 2548-V12SK

Information on the storage of sequins on request.

The daily evaporation and the static holding time were determined at 20°C, 1013 hectopascals, with a stationary container, closed lid and without canisters or suspension systems. These are nominal values that can change depending on the age and use of the container.

Subject to technical changes.
