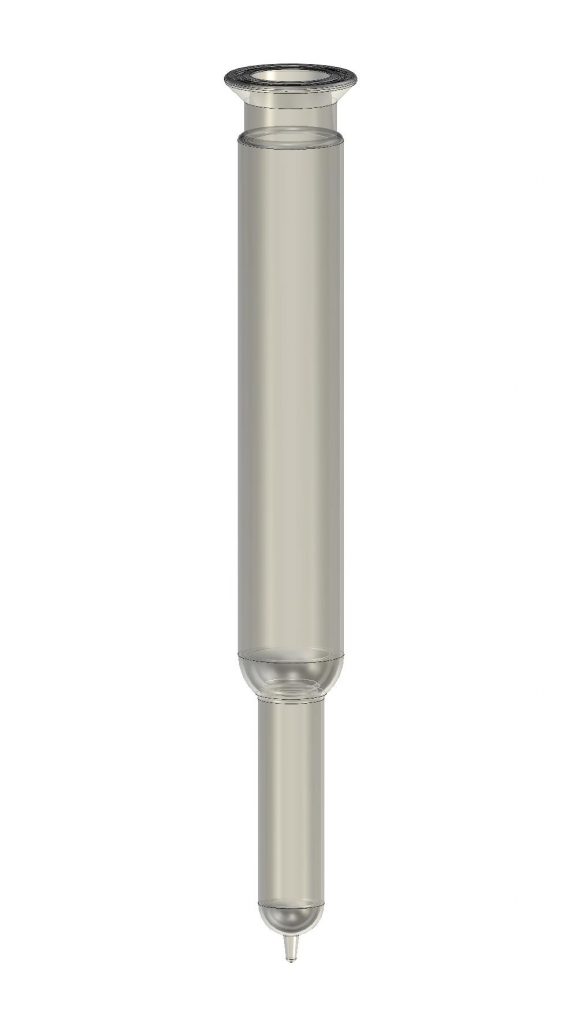

LN2 Glass cryostats with head flange and constriction
LN2 bath cryostats (Dewar flasks) are made of borosilicate glass 3.3 in accordance with DIN/ISO 3585 (DURAN) and are designed for use with liquid nitrogen. They are used as single cryostats or as LN2 cooling shields for liquid helium cryostats.
The cryostats are manufactured exclusively to customer order. The cryostats have a bulkhead flange with an O-ring groove as the head flange. Changes to dimensions, connections or volumes can usually be made at no additional cost. The LN2 cryostats listed in the table correspond to the most common dimensions and volumes. LN2 cryostats are supplied with opposing viewing strips as standard. Of course, the cryostats can also be offered with a visible strip or fully silver-plated. The standard cryostats are offered as a pure glass part. For a small surcharge, they can be fitted with a base cap or with a protective aluminum cover and visible strips.
Free inside diameter at the head flange
NW 60 | 57 mm |
NW 100 | 97 mm |
NW 120 | 117 mm |
NW150 | 147 mm |
NW 200 | 197 mm |
Type | D.I. [mm] | D.A. [mm] | H.I. [mm] | D.I.1 [mm] | D.A.1 [mm] | H.I.1 [mm] | Flange | Volume [l] |
---|---|---|---|---|---|---|---|---|
LNC 8-F | 60 | 80 | 450 | 30 | 44 | 300 | NW60 | 1.4 |
LNC 9-F | 104 | 130 | 450 | 40 | 56 | 300 | NW100 | 4.0 |
LNC 10-F | 124 | 150 | 450 | 40 | 56 | 300 | NW120 | 5.5 |
LNC 11-F | 136 | 160 | 450 | 48 | 65 | 300 | NW150 | 7.0 |
LNC 12-F | 158 | 185 | 450 | 55 | 75 | 300 | NW150 | 9.2 |
LNC 13-F | 200 | 230 | 450 | 60 | 80 | 300 | NW200 | 14.5 |
