Transport container for biological samples BE-Bio

Type 27 to 29

Application

  • Laboratory technology

  • Medical technology

  • Biotechnology

  • Internal transportation of medical or biological samples

  • Unpressurized coolant compartment

Advantages

  • High chemical resistance

  • High thermal resistance

  • Simple, cost-effective design

  • Quick change possible

Performance features

  • Reliable and economical

  • Dewar vessels according to DIN EN ISO 16496

  • Glass material according to ISO 3585

  • Nominal volume from 2 to 4 liters

  • Stainless steel protective cover

  • V1 and V2 for storage in LN2

  • V3 for vapor phase storage

  • for 2mL ampoules

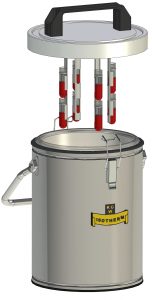

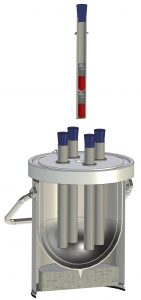

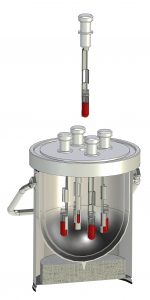

Type 27 BE-Bio-V3

Type 27 BE-Bio-V1

Type 27 BE-Bio-V2

Technical data

Type                    n Number of ampoules max. content [l] A [mm] B [mm] C [mm] D [mm] E [mm] Service life LN2 with ampoules [Tage] Article no.
27BE-Bio-V1 4 2 138 160 170 170 245 14 1222-V1
28BE-Bio-V1 8 3 138 160 170 230 305 22 1223-V1
29BE-Bio-V1 12 4 138 160 170 310 385 37 1224-V1
27BE-Bio-V2 5 2 138 160 170 170 245 14 1222-V2
28BE-Bio-V2 10 3 138 160 170 230 305 22 1223-V2
29BE-Bio-V2 15 4 138 160 170 310 385 37 1224-V2
27BE-Bio-V3 5 2 138 160 170 170 245 12 1222-V3
28BE-Bio-V3 10 3 138 160 170 230 305 20 1223-V3
29BE-Bio-V3 15 4 138 160 170 310 385 33 1224-V3

Further technical specifications, spare parts and accessories can be found in the technical data sheet

Technical data sheet

Download our technical data sheets as PDF

Transport containers type 27-29 BE-Bio


Evaporation rates type BE-Bio-CO2
